Heavy-Duty CNC Plate Cutting Solution for Thick Metal Fabrication
The ZS Machinery CNC Gantry Plasma & Flame Cutting Machine is engineered for precision cutting of carbon steel, stainless steel, aluminum, and other metal plates. Featuring a heavy-duty gantry structure, dual-side drive system, and advanced CNC controller, this machine provides stable operation, high cutting accuracy, and excellent productivity for industrial fabrication.
Designed for large-format metal processing, it supports both plasma cutting for high-speed precision and oxy-fuel flame cutting for thick carbon steel, making it an ideal solution for workshops requiring flexible cutting capabilities.
Plasma sheet cutting machine
Key Features
Heavy-Duty Gantry Structure
The machine frame is manufactured from high-strength steel and undergoes stress-relief treatment to minimize deformation during long-term operation. The rigid gantry design ensures excellent stability even during continuous heavy-duty production.
Dual-Side Drive System
The synchronized dual-side drive provides smooth movement and higher positioning accuracy, reducing vibration and improving overall cutting quality.
High Precision Linear Guide Rails
Equipped with industrial-grade linear guide rails, the machine delivers stable motion, long service life, and consistent cutting performance.
Plasma & Flame Dual Cutting
One machine supports two cutting technologies:
- Plasma Cutting for stainless steel, carbon steel, aluminum, and galvanized steel
- Flame Cutting for thick carbon steel plates
Users can choose the most suitable cutting process based on material type and thickness.
Intelligent CNC Control
The advanced CNC controller features an intuitive interface, automatic nesting support, and compatibility with standard CAD/CAM software, allowing operators to complete complex cutting tasks with ease.
Reliable Motion System
The machine adopts precision rack-and-pinion transmission and optional servo motors for smooth, accurate, and high-speed operation.
Cutting Capacity
| Cutting Method | Material | Recommended Thickness |
|---|---|---|
| Plasma Cutting | Carbon Steel | 1–30 mm |
| Plasma Cutting | Stainless Steel | 1–25 mm |
| Plasma Cutting | Aluminum | 1–20 mm |
| Flame Cutting | Carbon Steel | 6–200 mm |
Actual cutting thickness depends on the plasma power source and material quality.

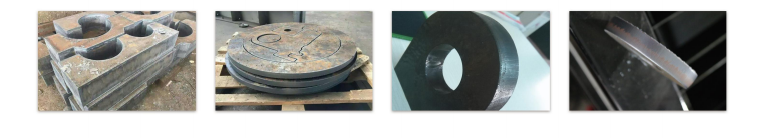

cutting samples
Machine Advantages
Excellent Structural Stability
The welded steel frame undergoes heat treatment and stress relief, ensuring long-term dimensional stability and preventing deformation.
Fast Cutting Speed
The CNC motion system allows rapid positioning and efficient cutting, significantly improving production efficiency.
High Cutting Accuracy
Dual-side synchronized driving and precision guide rails guarantee smooth movement and accurate cutting contours.
Low Maintenance
The machine uses durable mechanical components and industrial electrical systems, reducing maintenance costs and extending service life.
Flexible Configuration
Different working widths, rail lengths, plasma power supplies, and flame cutting systems are available to meet various production requirements.
Typical Applications
The CNC Gantry Plasma & Flame Cutting Machine is widely used in:
- Steel Structure Fabrication
- Construction Machinery
- Heavy Equipment Manufacturing
- Shipbuilding
- Bridge Construction
- Pressure Vessel Manufacturing
- Metal Processing Workshops
- Engineering Machinery
- Agricultural Machinery
- Automotive Components
- Energy Equipment
- Industrial Fabrication
Compatible Materials
This machine can process a wide range of metal materials, including:
- Carbon Steel
- Stainless Steel
- Mild Steel
- Galvanized Steel
- Aluminum
- Copper (with appropriate plasma system)
- Brass
- Alloy Steel
Optional Configurations
- Hypertherm Plasma Power Supply
- Huayuan Plasma Power Supply
- Automatic Torch Height Control (THC)
- Servo Motor Drive
- Automatic Ignition System
- Nesting Software
- Dust Collection Table
- Rotary Tube Cutting Attachment
- Multi-Torch Flame Cutting System
Why Choose ZS Machinery?
- Over 10 years of manufacturing experience
- Heavy-duty industrial machine construction
- Customized working sizes available
- Professional technical support
- Factory-direct pricing
- OEM & ODM services
- Global installation and training support
- CE-compliant manufacturing
Frequently Asked Questions
Can this machine perform both plasma and flame cutting?
Yes. The machine supports plasma cutting for high-speed precision processing and flame cutting for thick carbon steel plates.
What is the maximum working size?
Standard working widths are 2500 mm and 3000 mm, with a standard cutting length of 8000 mm. Larger custom sizes are available.
Which plasma power sources are supported?
The machine can be equipped with Hypertherm, Huayuan, LGK, or other compatible industrial plasma systems, with current options ranging from 63A to 400A.
Is customization available?
Yes. We provide customized rail lengths, cutting widths, controller brands, plasma systems, torch configurations, and additional automation options to meet specific production needs.
