The CNC laser tube cutting machine is an advanced solution designed for precise, efficient, and intelligent tube processing. With its high-speed cutting capabilities, the machine delivers clean edges, minimizes material waste, and supports bevel cutting as well as flat cutting with exceptional consistency across various metals.

It is widely used in industries where precision and efficiency are critical, such as metal fabrication, automotive parts manufacturing, fitness equipment, construction machinery, and furniture production.

Equipped with a 240 mm precision chuck, a water-cooled fiber laser source, and an automatic feeding system, the machine ensures reliable performance and seamless integration into modern production lines. Its automation design allows manufacturers to achieve high precision, high throughput, and low operating costs while meeting the demands of mass production.

Key Features and Advantages

High-Precision 240 mm Full-Stroke Chuck

Adjustable from 15 mm to 240 mm, covering a wide cutting range. Ensures stable clamping and accurate cutting for tubes of different diameters, delivering consistent results for every project.

Linear Feeding System

Provides smooth and reliable material feeding, ensuring stable cutting and improved production efficiency.

Water-Cooling System

Effectively reduces cutting head temperature, extends machine lifespan, and ensures consistent cutting quality.

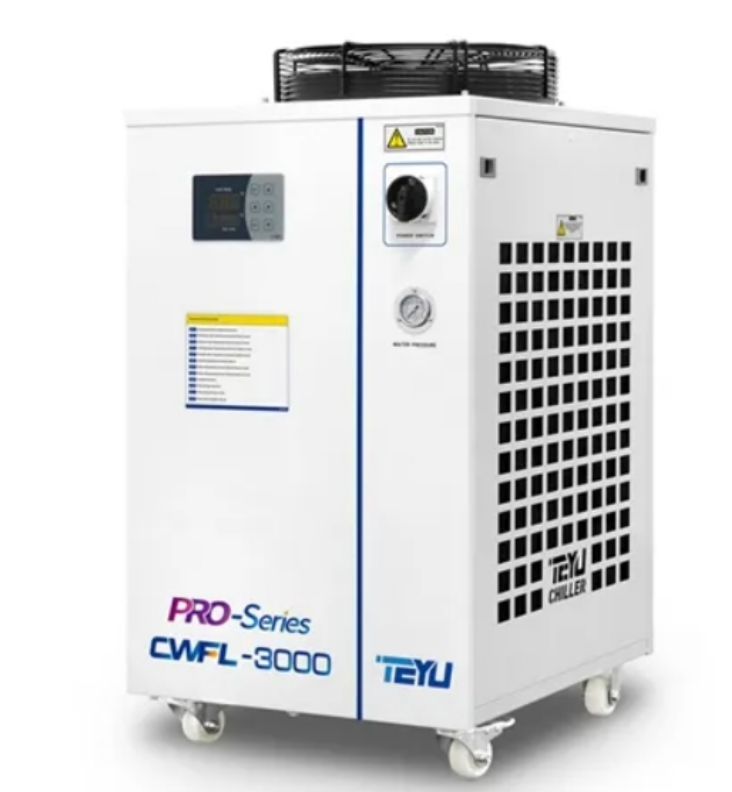

Water cooling system

Premium Fiber Laser Source (MAX)

Equipped with a leading domestic brand laser source, offering outstanding performance, stability, and high-quality cutting results.

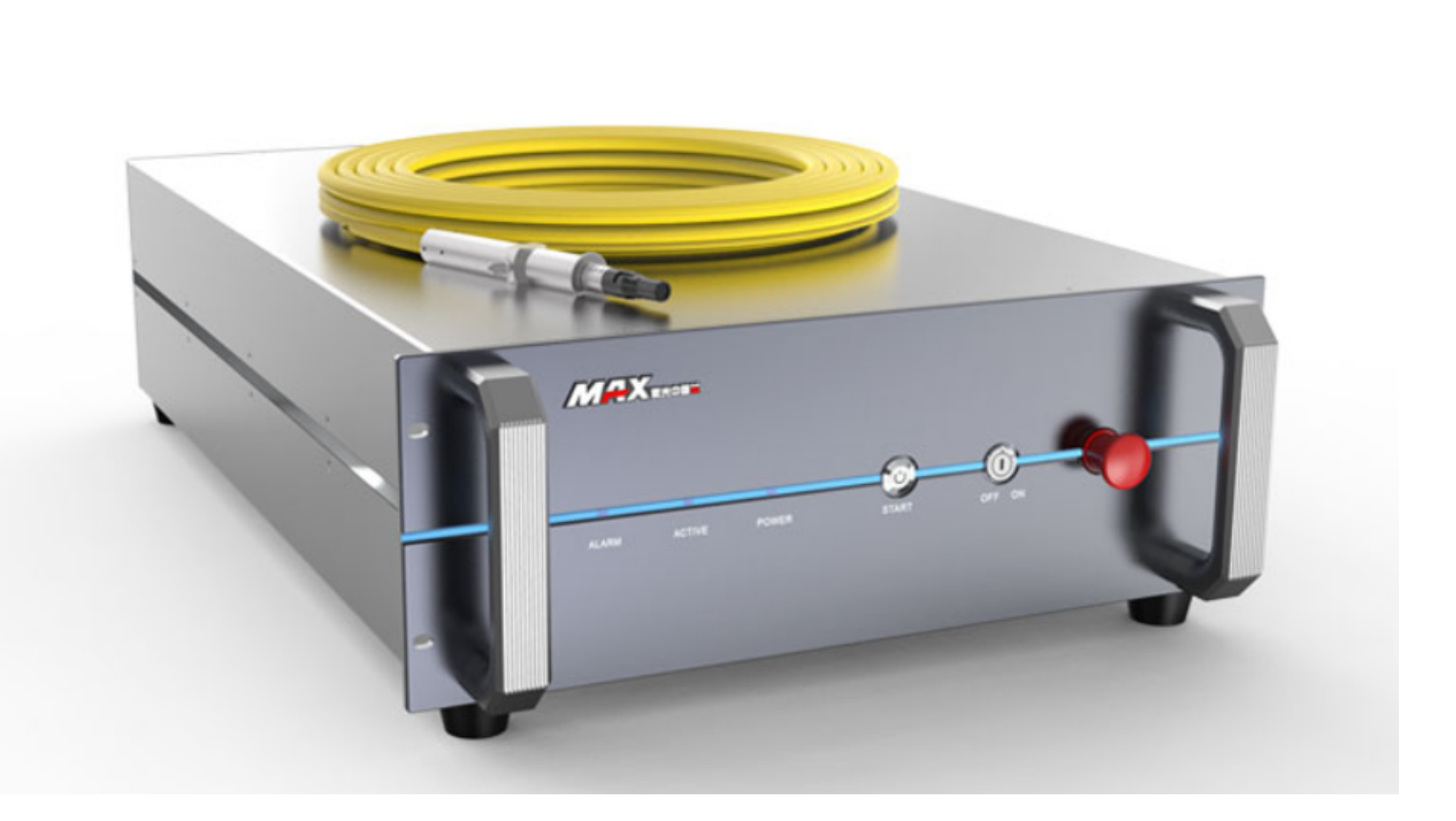

Laser Source

Advanced Cutting Head

Capable of fast, precise, and flexible cutting of metal tubes with varying wall thickness, meeting diverse industry requirements.

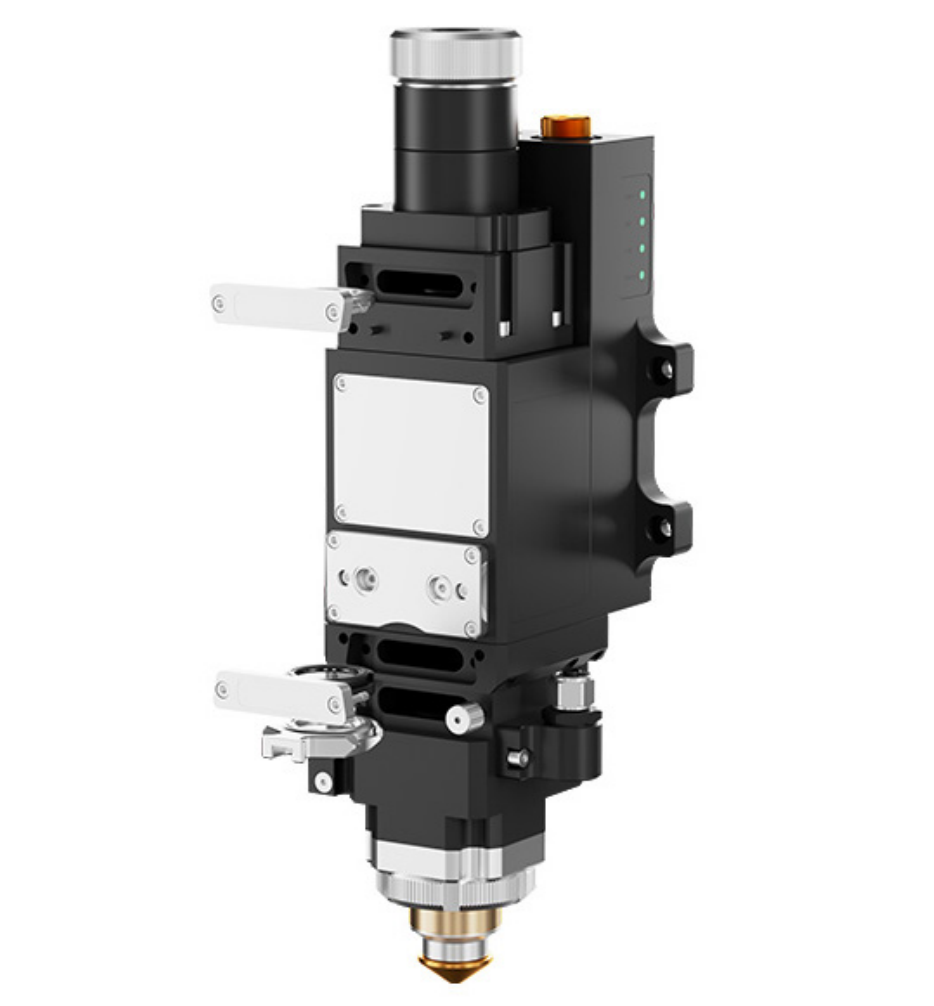

Laser cutting head

Fully Automatic Loading Rack

Supports automated tube cutting with bulk loading capabilities, improving throughput while reducing manual labor.

Lubrication Oil Recycling System

Automatically recycles oil, prevents leakage, reduces maintenance costs, and supports eco-friendly operations.

Seamless Material Preparation System

Prepares the next tube during current cutting operations, enabling continuous tube cutting and enhanced production flow.

With these advantages, the ZS CNC Laser Tube Cutting Machine empowers manufacturers to achieve higher precision, lower costs, and greater efficiency in modern production environments.

Applications

The ZS CNC laser tube cutting machine is suitable for processing a wide range of materials, including steel, stainless steel, aluminum, and alloy tubes—making it the ideal choice for various industrial applications:

Automotive Manufacturing

Precision cutting for exhaust systems, chassis frames, and structural supports. Stainless steel and alloy tubes are widely used in fuel delivery systems and safety components where accuracy is critical.

Fitness Equipment

High-strength stainless steel tube cutting for fitness machines, weight racks, and gym frames. Ensures clean, consistent joints for improved durability and aesthetics.

Construction & Infrastructure

Cutting large-diameter steel and alloy tubes for scaffolding, structural beams, and piping systems. High precision ensures safety and reliability in demanding environments.

Metal Furniture

Cutting aluminum and stainless steel tubes into custom shapes for chairs, tables, shelves, and industrial racks. Smooth edges and seamless joints improve design flexibility and product quality.

Mechanical Engineering & Manufacturing

Versatile cutting for machine frames, conveyor systems, and custom components. Supports both mass production and small-batch, specialized orders.

Thanks to its flexibility, accuracy, and high level of automation, the ZS CNC laser tube cutting machine offers a powerful solution for meeting the modern demands of laser tube cutting across industries.

Why Choose Our CNC Laser Tube Cutting Machine

Selecting the right cutting solution is vital for efficiency, quality, and long-term reliability. At ZS Laser, we provide more than just equipment—we deliver a dependable CNC laser tube cutting solution designed around customer needs.

Superior Quality & Reliability

Built with premium components, stable motion systems, and top-brand laser sources to ensure consistent performance for years.

Free Pre-Sales Testing

We provide free cutting tests with your samples before purchase, ensuring the machine fully meets your production requirements.

Customized Cutting Solutions

From automated tube cutting systems to custom fixtures and feeding setups, we design optimized solutions tailored to your production line.

User-Centered Design Improvements

Practical upgrades like the oil recycling system (reduces waste and maintenance), seamless material preparation system (minimizes downtime), and high-power motors (faster feeding) make production more efficient and cost-effective.

Comprehensive After-Sales Support

We offer operator training, spare parts supply, and remote technical assistance to keep your production running smoothly.

By choosing ZS Laser, you’re not only investing in a machine—you’re partnering with a long-term production ally dedicated to your growth.

Customer Benefits

Investing in the ZS CNC laser tube cutting machine brings immediate and measurable benefits to your production:

Higher Cutting Efficiency

Advanced feeding systems, seamless preparation, and automatic loading racks enable uninterrupted production, significantly boosting overall efficiency.

Reduced Production Costs

By minimizing labor reliance and reducing material waste, the machine cuts production costs and ensures faster ROI.

Precision Tube Cutting

With a high-precision 240 mm chuck and advanced laser cutting head, it guarantees consistent accuracy and clean edges with no need for secondary processing.

Lower Maintenance Costs

Features such as lubrication circulation and water-cooling extend the lifespan of critical components, reducing long-term maintenance expenses.

With ZS Laser, your production line will achieve greater speed, lower costs, and superior cutting quality—a true step forward in smart manufacturing.

Upgrade Your Production with ZS CNC Laser Tube Cutting Machine

Enhance your production efficiency and unlock the future of intelligent manufacturing.
📩 Contact us today to experience precision, efficiency, and automation in every cut!

Installation Requirements for Laser Pipe Cutting Machine

Environmental Conditions: The fiber laser source should be operated at 15–35°C with relative humidity below 85%.

Power Supply: On-site distribution cabinet must provide 380V, 50Hz, three-phase four-wire power with short-circuit protection.

Grounding: A dedicated grounding system is required, with resistance not exceeding 4Ω.

Lifting & Handling: Provide suitable lifting equipment and personnel for machine installation.

Commissioning Materials: Prepare necessary materials for on-site testing, such as steel plates.

Auxiliary Conditions:

1.Cutting assist gases: Nitrogen (N₂) and Oxygen (O₂).

2.Clean, oil-free compressed air supply system.

Foundation Requirements: Concrete foundation with a minimum thickness of 300 mm.

Vibration Control: The installation area should be free from vibration sources or equipped with vibration isolation channels.

Safety & Maintenance Notes for Laser Pipe Cutting Machine

1.Pre-Operation Check: Before starting, inspect the Y-axis guide rail and chuck for foreign objects and clean them if necessary.

2.Cooling System Precautions:

When ambient temperature is below 0℃, add antifreeze to the chiller and run it in circulation, or keep the chiller running 24 hours.

When ambient temperature is above 10℃, replace the coolant with purified water.

3.Lubrication: Regularly apply grease to the ball screws (X/Z axes), rotary chuck, rear chuck, and loading rack. Add special oil mist lubricating oil to the chuck air source lubricator.

4.Air Compressor Maintenance: Drain wastewater regularly by opening the discharge valve at the bottom of the air compressor’s air storage tank.

5.Grounding: The machine must be independently grounded.

6.High-Temperature Operation: If condensation (water droplets) appears on the cutting head surface during hot weather, stop operation immediately and adjust the chiller to the proper working temperature.

7.Optical Lens Replacement: Ensure the surrounding environment is clean when replacing lenses. Always turn off fans or any devices that may generate dust.
